air duct hoses and clamps
#1
mgainaussie Avatar
mgainaussie Gary Lock
Gold Coast, Australia   AUS
Sign in to contact
1958 MG MGA 1500
1960 MG MGA 1600
1960 MG MGA 1600
1960 MG MGA 1600    & more
Has anyone got a photographic description of how the clamps should be finished off..step by step please?

Reply
Was this post helpful or interesting?
Yes No Thank
. Become a Supporting Member to hide the ad above & support a small business
Re: air duct hoses and clamps
#2
Gary E Avatar
Gary E Gary Edwards
Kernersville, NC, USA   USA
Sign in to contact
1962 MG MGA MkII
Search the forum, we had a discussion awhile back.


Gary

Murphy's law

Tell a man there are 300 billion stars in the universe, and he'll believe you. Tell him a bench has wet paint on it, and he'll have to touch it to be sure.

Reply
Was this post helpful or interesting?
Yes No Thank
Re: air duct hoses and clamps
#3
mgainaussie Avatar
mgainaussie Gary Lock
Gold Coast, Australia   AUS
Sign in to contact
1958 MG MGA 1500
1960 MG MGA 1600
1960 MG MGA 1600
1960 MG MGA 1600    & more
Gary, did that and couldn't find anything. Can you find anything? I just need the correct way of feeding the clear end through etc.

Reply
Was this post helpful or interesting?
Yes No Thank
Re: air duct hoses and clamps
#4
Gary E Avatar
Gary E Gary Edwards
Kernersville, NC, USA   USA
Sign in to contact
1962 MG MGA MkII
This is the one I was thinking of. Barney says there is only one ring clamp and 3 of the large p clips but no pics. Some one else may chime in with pics.

https://www.mgexp.com/phorum/read.php?2,3389641


Gary

Murphy's law

Tell a man there are 300 billion stars in the universe, and he'll believe you. Tell him a bench has wet paint on it, and he'll have to touch it to be sure.

Reply
Was this post helpful or interesting?
Yes No Thank
. Become a Supporting Member to hide the ad above & support a small business
Re: air duct hoses and clamps
#5
ghnl Avatar
ghnl Eric Russell
Mebane, NC, USA   USA
Sign in to contact
1961 MG MGA "Calvin"
I'm not understanding the question. Do you mean the air ducts from behind the grill to the heater?




Eric Russell ~ Mebane, NC
1961 MGA #61, 1̶9̶8̶1̶ ̶A̶l̶f̶a̶ ̶R̶o̶m̶e̶o̶ ̶G̶T̶V̶6̶, 1984 Alfa Romeo Spider, 1991 Honda ST1100

Reply
Was this post helpful or interesting?
Yes No Thank
Re: air duct hoses and clamps
#6
Don MGA 1600 Avatar
Don MGA 1600 Silver Member Don Tremblay
Rutland, MA, USA   USA
Sign in to contact
1960 MG MGA "My Oldest Friend"
1962 Jaguar E-Type "Rich Bitch"
Gary,

Sorry. You lost me too. I do not understand your question.

"how the clamps should be finished off . . .step by step"?

Don


Look sharply after your own thoughts. They come unlooked for, like the morning dove upon your window sill, and, if you turn to your usual task, disappear; and you shall never find that perception again; never, I say-but perhaps years, ages, and I know not what events and worlds my lie between you and its return.

Ralph Waldo Emerson

Reply
Was this post helpful or interesting?
Yes No Thank
Re: air duct hoses and clamps
#7
barneymg Avatar
barneymg Barney Gaylord
Somewhere in North America, Throw a dart., USA   USA
Sign in to contact
1958 MG MGA "MGA With An Attitude"
Here's a picture of the clamp installed:

There should be one 4-inch band clamp securing the air hose onto the heater inlet duct. This is thin steel strap with a "buckle" at one end. There is a wind-up pin that looks like a split pin (cotter pin to us yanks). Insert the end of the thin metal band through the slot in the split pin, and wind it up to take up the slack and tighten the band onto the hose (like the wind-off key on the old sardine cans or coffee cans, if you are old enough to remember those).


Barney Gaylord - 1958 MGA with an attitude - https://MGAguru.com - barneymg@mgaguru.com - Ph: 630-946-3841
(Please email me direct, do not leave a PM on the public server).

Reply
Was this post helpful or interesting?
Yes No Thank
Re: air duct hoses and clamps
#8
mgainaussie Avatar
mgainaussie Gary Lock
Gold Coast, Australia   AUS
Sign in to contact
1958 MG MGA 1500
1960 MG MGA 1600
1960 MG MGA 1600
1960 MG MGA 1600    & more
Eric and Don...the heading explained it.

Thanks Barney for understandingsmileys with beer

Reply
Was this post helpful or interesting?
Yes No Thank
Re: air duct hoses and clamps
#9
Don MGA 1600 Avatar
Don MGA 1600 Silver Member Don Tremblay
Rutland, MA, USA   USA
Sign in to contact
1960 MG MGA "My Oldest Friend"
1962 Jaguar E-Type "Rich Bitch"
Gary,

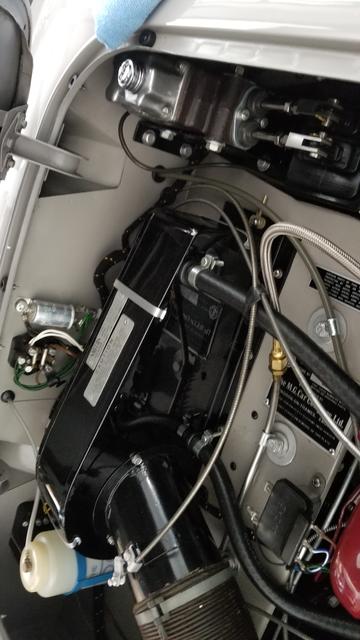

As Barney mentioned and per factory original installation, there is only one heater duct clamp located in the picture that I provided, However, it is common to see up to four such clamps in the engine bay area.

The clamp has one end that looks like a modified cotter pin with a slot going through it. The end of the flat strap portion is fed through the slot and then with an awl through the cotter or pliers, you rotate the cotter and it will take up the slack in the strap.

Don


Look sharply after your own thoughts. They come unlooked for, like the morning dove upon your window sill, and, if you turn to your usual task, disappear; and you shall never find that perception again; never, I say-but perhaps years, ages, and I know not what events and worlds my lie between you and its return.

Ralph Waldo Emerson



Edited 1 time(s). Last edit at 2018-04-29 08:24 AM by Don MGA 1600.


Attachments:
Engine Heater Shelf.jpg    39.5 KB
Engine Heater Shelf.jpg

Heater IMG_3268.JPG    40.1 KB
Sign In or Register to view this photo
Reply
Was this post helpful or interesting?
Yes No Thank
Re: air duct hoses and clamps
#10
bikermga Avatar
bikermga Peter Tilbury
Surrey, BC, Canada   CAN
Sign in to contact
1956 MG MGA
1958 MG MGA coupe
Gary,

Getting picky in your old age. The clamps are not related to rocket science. LOL.

Only one is used, on the heater box inlet.

Peter.

Reply
Was this post helpful or interesting?
Yes No Thank
  James E thanked bikermga for this post
Re: air duct hoses and clamps
#11
mgainaussie Avatar
mgainaussie Gary Lock
Gold Coast, Australia   AUS
Sign in to contact
1958 MG MGA 1500
1960 MG MGA 1600
1960 MG MGA 1600
1960 MG MGA 1600    & more
Peter, thought there were four. One on the fresh air from grill heater pipe where it clamps to the pipe/duct, and one on each end of the pipe after the duct to heater unit. Then there is one on the upper end of the grill to carby pipe.

Reply
Was this post helpful or interesting?
Yes No Thank
Re: air duct hoses and clamps
#12
markmga Avatar
markmga Silver Member Mark Wellard
Brisbane, QLD, Australia   AUS
Sign in to contact
1959 MG MGA Twin-Cam
1959 MG MGA Twin-Cam Coupe
1961 MG MGA 1600
1969 MG MGC
Gary,
The top of the short tube that goes from the grill to the radiator duct panel is held in place with a self tapping screw. Look for a hole in the duct panel tube to show where it goes. The fronts of the tubes are held by a large P-clip. The longer heater inlet pipe has a P-clip mid way along and an adjustable band at the heater. That makes 3 large P-clips and one adjustable band clamp. I haven't seen a clip at the front of the longer pipe.

Mark

Reply
Was this post helpful or interesting?
Yes No Thank
Re: air duct hoses and clamps
#13
mgainaussie Avatar
mgainaussie Gary Lock
Gold Coast, Australia   AUS
Sign in to contact
1958 MG MGA 1500
1960 MG MGA 1600
1960 MG MGA 1600
1960 MG MGA 1600    & more
Mark, it was only the Australian assembled cars that had the self tapper there apparently.

Reply
Was this post helpful or interesting?
Yes No Thank
Re: air duct hoses and clamps
#14
mgainaussie Avatar
mgainaussie Gary Lock
Gold Coast, Australia   AUS
Sign in to contact
1958 MG MGA 1500
1960 MG MGA 1600
1960 MG MGA 1600
1960 MG MGA 1600    & more
Clausagers book shows several cars with four of the adjustable clamps.

Reply
Was this post helpful or interesting?
Yes No Thank
Re: air duct hoses and clamps
#15
markmga Avatar
markmga Silver Member Mark Wellard
Brisbane, QLD, Australia   AUS
Sign in to contact
1959 MG MGA Twin-Cam
1959 MG MGA Twin-Cam Coupe
1961 MG MGA 1600
1969 MG MGC
Gary,
That would explain why my 1600 has a self tapper and there is no hole on my coupe.

The SPL doesn't show any extra clips so it is likely that the extras shown in Clausager are added later.
http://mgaguru.com/photos/orig1600/117.jpg doesn't show any extra clips.

Mark

Reply
Was this post helpful or interesting?
Yes No Thank
  ManuelM thanked markmga for this post
