Front Indicator Lens Removal
#1
kneerm Roger Knee
Milton Keynes, Buckinghamshire, UK   GBR
Sign in to contact

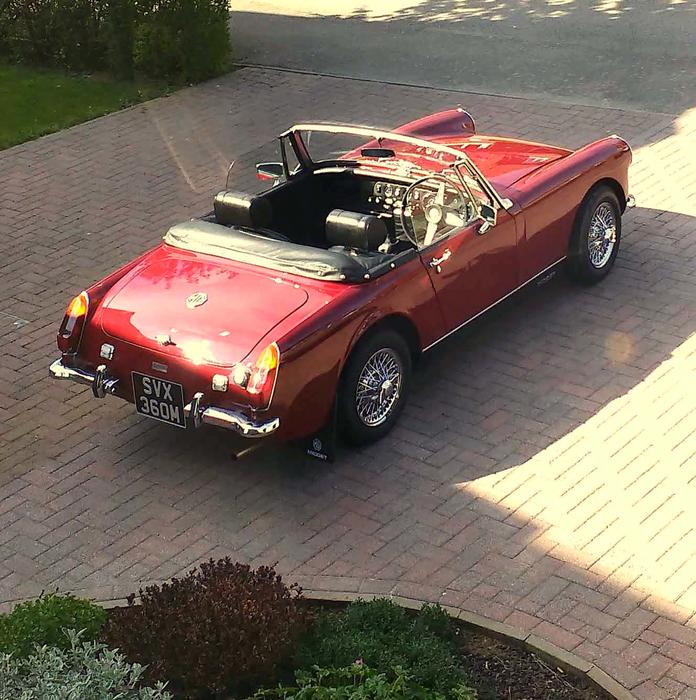

1974 MG Midget
Can anyone tell me how to remove the amber glass cover over the light bulb?

Appears to be held by a metal clip but not obvious how you release it.

Regards

Reply
Was this post helpful or interesting?
Yes No Thank
. Become a Supporting Member to hide the ad above & support a small business
Re: Front Indicator Lens Removal
#2
Nick6867 Nick Tomaine
Baltimore, MD, USA   USA
Sign in to contact
1976 MG Midget
What year car do you have?

Reply
Was this post helpful or interesting?
Yes No Thank
Re: Front Indicator Lens Removal
#3
kneerm Roger Knee
Milton Keynes, Buckinghamshire, UK   GBR
Sign in to contact
1974 MG Midget
My Midget is 1974 RWA 1275 cc

Reply
Was this post helpful or interesting?
Yes No Thank
Re: Front Indicator Lens Removal
#4
littlecars Avatar
littlecars David Bassett
Nashville, TN, USA   USA
Sign in to contact
1959 Ford Country Sedan "Oliver's Hearse"
1963 Chevrolet Corvair "SOLD!"
1965 Chevrolet Corvair "Ski Team Transport SOLD!"
1965 MG Midget MkII "Buffoon --- SOLD!!!"    & more
On a 74 (US spec) there should be screws on either side of the trim ring. Then, removed, you'll find a rubber gasket which cushions the trim, also "traps" the lens. Wiggle the lens and it should come free. That is unless the material has deteriorated over the years and fused to the front fender. At first I thought you might be talking about the glass beehive lenses used on Frogeyes and Sprites.

Side markers (American-speak) are held on with one screw, and there is a tab on the amber lens which is captured by the metal base.



Edited 2 time(s). Last edit at 2019-10-03 08:19 AM by littlecars.

Reply
Was this post helpful or interesting?
Yes No Thank
. Become a Supporting Member to hide the ad above & support a small business
Re: Front Indicator Lens Removal
#5
kneerm Roger Knee
Milton Keynes, Buckinghamshire, UK   GBR
Sign in to contact
1974 MG Midget
I am talking about the Beehive Lenses

I cannot see how to remove them.

Regards

Reply
Was this post helpful or interesting?
Yes No Thank
Re: Front Indicator Lens Removal
#6
Billm Gold Member Bill Masquelier
Santee, CA, USA   USA
Sign in to contact
1960 MG MGA 1600
1965 MG Midget MkII
1966 Austin-Healey Sprite "Sprite"
1966 Austin-Healey Sprite "Sprite"
Use a pocket knife and pry up the metal ring then pry out the lens
Billm

Reply
Was this post helpful or interesting?
Yes No Thank
Re: Front Indicator Lens Removal
#7
kneerm Roger Knee
Milton Keynes, Buckinghamshire, UK   GBR
Sign in to contact
1974 MG Midget
Would a flat blade screwdriver work?

Not sure where to pry, should I be prying the metal tabs away from the glass beehive? I assume that when refitting pushing on the beehive will spread the metal tabs?

Regards

Reply
Was this post helpful or interesting?
Yes No Thank
Re: Front Indicator Lens Removal
#8
PeterC Avatar
PeterC Platinum Member Peter Caldwell
Madison Wisconsin, USA   USA
Sign in to contact
1931 Morris Minor Saloon "Cammy OHC"
1960 Land Rover Series II
1962 MG Midget MkI
1963 Volkswagen Karmann Ghia    & more
OK... These are NOT used in USA spec cars so there will be some incorrect advise given. On UK and some other countries, the front glass lens is a dual focus type and is clear with 2 bulb holders. One bulb is for the clear parking/running lights. The other bulb is for turn signal, and it has a small amber coloured dome over the bulb. That's what the OP is wanting info on removing.

I have never experienced an issue removing that dome lens.

For reference, the lamp model is Lucas L584 the amber dome lens is Lucas 576286 You should be able to find pictures of both

Peter C

https://www.google.com/search?q=lucas+l584&rlz=1C1SQJL_enUS805US805&sxsrf=ACYBGNRa5p0MB2FnjuEaFpQYODW8Vi5aPw:1570114008086&tbm=isch&source=iu&ictx=1&fir=Nqfl0-WsFq4hdM%253A%252CqOL6-Dby6qKPSM%252C_&vet=1&usg=AI4_-kTeeTlIc-SLEFb9A_PdjLYLjp9FLA&sa=X&ved=2ahUKEwiGv9W9qoDlAhUFWK0KHZT-Ai0Q9QEwAXoECAkQCQ#imgrc=Nqfl0-WsFq4hdM:



Edited 1 time(s). Last edit at 2019-10-03 09:47 AM by PeterC.


Member Services:
World Wide Auto Parts of Madison www.worldwideimportautoparts.com
Supplying New Old Stock parts for all imports. A LARGE quantity being loaded to our EBAY store stores.ebay.com/worldwideimportautoparts Rebuilding lever shock absorbers for British cars. (608) 223-9400 M-F 9-5 Central or parts@nosimport.com
Reply
Was this post helpful or interesting?
Yes No Thank
Re: Front Indicator Lens Removal
#9
ice Avatar
ice Platinum Member Larry Ice
Lawrenceville, GA, USA   USA
Sign in to contact
1971 MG Midget MkIII
Roger, like Nick mentions, it is nice for everyone if you enter the year of your car in your profile. That way we could see straight away the year in every post you make. Much better than having to hunt for the year of your car. Go into your profile and select the year of your car which will be in your post from then on. It's one time and your are finished.

Are we talking about beehive lenses like on the Bugeyes?


Iceman

Atlanta GA

71 MG Midget

62 AH MKII
67 Midget
71 Midget

Reply
Was this post helpful or interesting?
Yes No Thank
Re: Front Indicator Lens Removal
#10
PeterC Avatar
PeterC Platinum Member Peter Caldwell
Madison Wisconsin, USA   USA
Sign in to contact
1931 Morris Minor Saloon "Cammy OHC"
1960 Land Rover Series II
1962 MG Midget MkI
1963 Volkswagen Karmann Ghia    & more
In reply to # 4021624 by ice
Are we talking about beehive lenses like on the Bugeyes?

No. See my post above


Member Services:
World Wide Auto Parts of Madison www.worldwideimportautoparts.com
Supplying New Old Stock parts for all imports. A LARGE quantity being loaded to our EBAY store stores.ebay.com/worldwideimportautoparts Rebuilding lever shock absorbers for British cars. (608) 223-9400 M-F 9-5 Central or parts@nosimport.com
Reply
Was this post helpful or interesting?
Yes No Thank
Re: Front Indicator Lens Removal
#11
kneerm Roger Knee
Milton Keynes, Buckinghamshire, UK   GBR
Sign in to contact
1974 MG Midget
Peter,

Yes I am talking about beehive lenses

I'm trying to find best way of removing to replace the bulbs with LED's

Given they are glass don't want to finish up breaking them.

Regards

Reply
Was this post helpful or interesting?
Yes No Thank
Re: Front Indicator Lens Removal
#12
refisk Rick Fisk
Frankenmuth, MI, USA   USA
Sign in to contact
Roger,

If they are this type of lens simply use a small flat screwdriver to pull back the rubber on the outer edge of the chrome ring. Slowly work your way around the lens until you can remove the ring.


In reply to # 4021754 by kneerm Peter,

Yes I am talking about beehive lenses

I'm trying to find best way of removing to replace the bulbs with LED's

Given they are glass don't want to finish up breaking them.

Regards


Attachments:
FA709D1D-4414-4F63-AF4B-7DCDF7CE5087.jpeg    48.6 KB

Reply
Was this post helpful or interesting?
Yes No Thank
Re: Front Indicator Lens Removal
#13
PeterC Avatar
PeterC Platinum Member Peter Caldwell
Madison Wisconsin, USA   USA
Sign in to contact
1931 Morris Minor Saloon "Cammy OHC"
1960 Land Rover Series II
1962 MG Midget MkI
1963 Volkswagen Karmann Ghia    & more
smh


Member Services:
World Wide Auto Parts of Madison www.worldwideimportautoparts.com
Supplying New Old Stock parts for all imports. A LARGE quantity being loaded to our EBAY store stores.ebay.com/worldwideimportautoparts Rebuilding lever shock absorbers for British cars. (608) 223-9400 M-F 9-5 Central or parts@nosimport.com
Reply
Was this post helpful or interesting?
Yes No Thank
  littlecars thanked PeterC for this post
Re: Front Indicator Lens Removal
#14
refisk Rick Fisk
Frankenmuth, MI, USA   USA
Sign in to contact
Must have a different kind of bee in Buckinghamshire.

In reply to # 4021785 by PeterC smh

Reply
Was this post helpful or interesting?
Yes No Thank
Re: Front Indicator Lens Removal
#15
littlecars Avatar
littlecars David Bassett
Nashville, TN, USA   USA
Sign in to contact
1959 Ford Country Sedan "Oliver's Hearse"
1963 Chevrolet Corvair "SOLD!"
1965 Chevrolet Corvair "Ski Team Transport SOLD!"
1965 MG Midget MkII "Buffoon --- SOLD!!!"    & more
Roger, a photo of the front of his car would help. Even on the UK Spridgets, I thought the addition of a second socket held a lamp but not another lens (??). And I thought glass had gone away by 1974. Perhaps someone customized the front of your car?
